The Beam Iridium Bolt Mount Antenna is designed to provide a stable and reliable satellite connection for Iridium devices in both fixed and mobile installations.

With its bolt-mount design, it is suited to permanent installations on vehicles, vessels, and fixed sites where a secure and consistent antenna position is required.

Built for outdoor use, it features a durable, weather-resistant construction that helps maintain performance in harsh and remote environments.

This antenna is a practical choice for setups that require dependable satellite communication with a clean, fixed mounting solution.

Weight: 0.29 kg

Dimensions: 77.3 x 36.5 mm

Mounting Type: Bolt Mount

IP Rating: IP67

Material: ABS

Frequency Range: 1616 to 1626.5 MHz

Polarisation: Right-hand circular

Axial Ratio: 3 dB max

Peak Gain: ~4.5 dBi

Impedance: 50 Ohms

VSWR: ~1.2:1

Connector: TNC-M

Cable Length: 5 m (integrated)

Operating Temperature: -40 deg C to +85 deg C

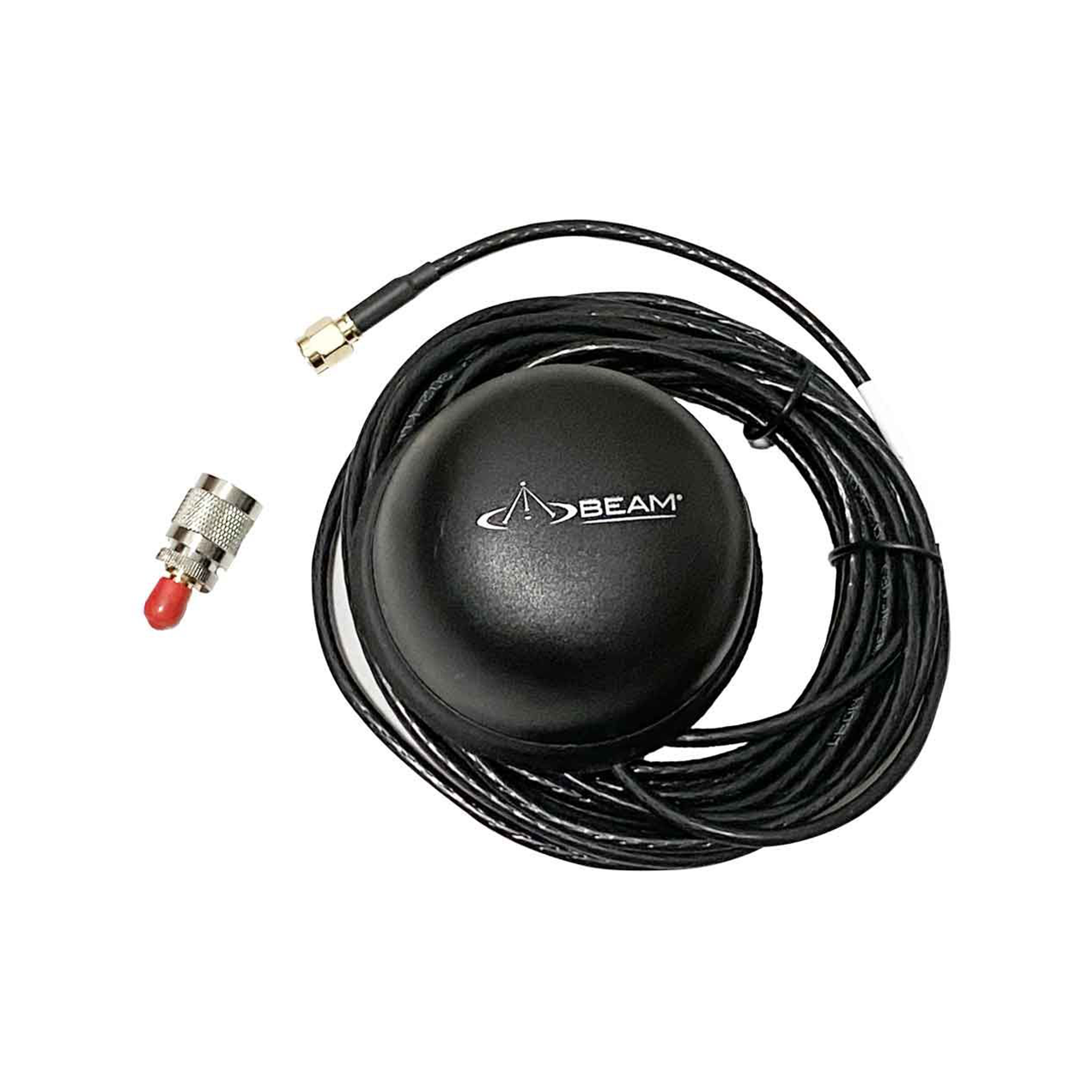

Beam Iridium Bolt Mount Antenna (RST220)

SMA to TNC Adapter

Secure bolt-mount design: Provides a fixed and stable installation for vehicles, marine setups, and permanent sites.

Reliable satellite performance: Supports consistent Iridium signal connectivity in remote and low-coverage areas.

Built for outdoor conditions: Weather-resistant construction helps maintain performance in harsh environments.

Clean installation solution: Ideal for setups where a permanent, low-profile antenna is preferred over temporary mounts.

Versatile application: Suitable for both mobile and fixed installations across a range of industries and use cases.
