Description

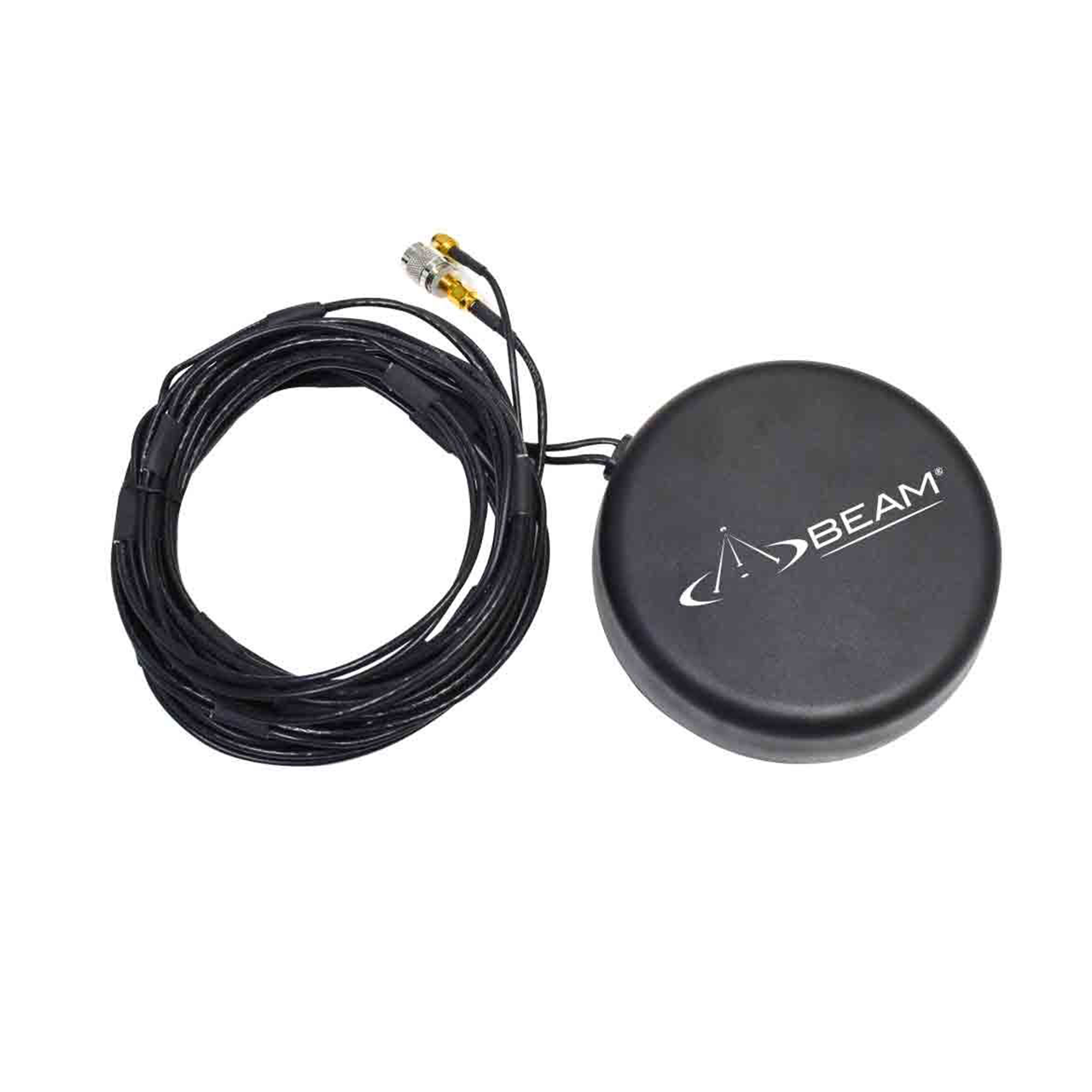

The Beam Iridium Magnetic Dual Mode Antenna (Heavy Duty) is designed to provide reliable satellite communication in demanding environments where durability and performance matter.
It is ideal for vehicle, marine, and off-road setups where a strong magnetic mount allows quick installation and flexible positioning on metal surfaces.
Built for tough conditions, this antenna supports both Iridium communication and GPS, helping maintain consistent connectivity when working or travelling in remote areas.
Specifications
Weight: 0.61kg
Dimensions: 135.5 x 30.0mm
IP Rating: IP67, IP69K, IK09
Mounting Type: Magnetic
Antenna Frequency: 1616 - 1626.5 MHz
GPS Frequency: 1575.42 x 5MHz
Polarization: Right Hand Circular
Axial Ratio: 3dB Max
Antenna Amplifier Gain: Passive
GPS Amplifier Gain: 28dB (2.7VDC)
GPS Voltage: 1.5VDC - 3.6VDC
GPS Current: 9mA (2.7VDC)
GPS Noise Figure: 1.8 dB (2.7VDC)
Impedance: 50 Ohms
VSWR: ~1.2:1
Antenna Connector: TNC-M (with SMA-F to TNC-M Adapter)
GPS Connector: SMA-M
Operating Temperature: -40 deg C to +85 deg C
Kit Contents
Magnetic Dual Mode Antenna (with 5m cable)
SMA to TNC Adapter
Features
Dual mode functionality: Supports both Iridium communication and GPS in one antenna.
Heavy duty design: Built to perform reliably in harsh and demanding environments.
Magnetic mounting: Allows quick and secure installation on metal surfaces.
Reliable connectivity: Helps maintain stable communication in remote and off-grid locations.
Flexible use: Suitable for vehicle, marine, and portable setups.
