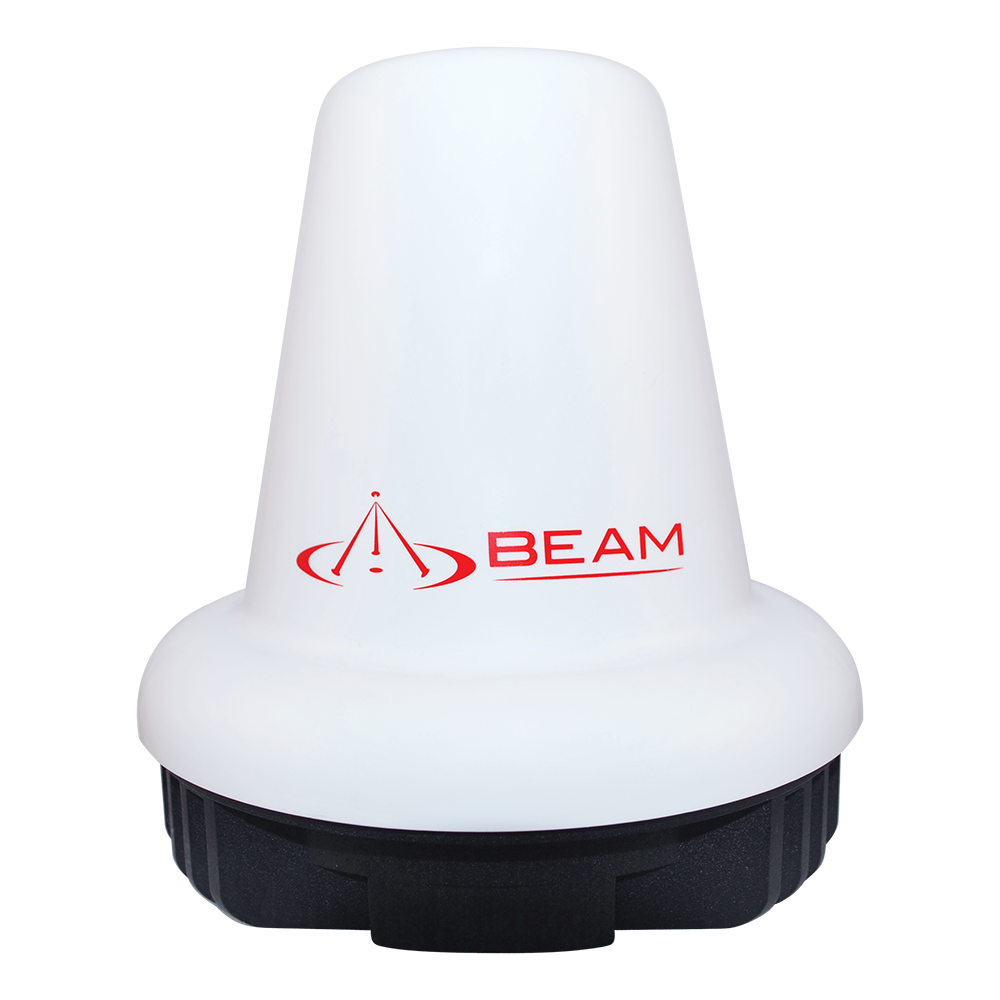

The Beam Inmarsat Mast/Pole Marine Active Antenna is designed to provide reliable satellite communication for marine and fixed installations.

Built specifically for harsh offshore environments, it is suited to boats, yachts, and vessels that require consistent voice and data connectivity while operating at sea.

The mast or pole mounting design allows for optimal antenna positioning, helping maintain stable signal performance in open and exposed conditions.

This antenna is a dependable choice for marine setups that need continuous satellite communication in remote or offshore locations.

Weight: 0.87 kg

Dimensions: 207 x 142 x 142 mm

IP Rating: IPX7

Mounting Type: Mast/Pole mount (25.4 mm recommended diameter)

Transmit Frequency (Operational): 1626.5 to 1660.5 MHz

Transmit Frequency (Extended): 1668.0 to 1675.0 MHz

Receive Frequency (Operational): 1525.0 to 1559.0 MHz

GNSS Frequency: 1575.42 x 10.25 MHz

Receive Frequency (Extended): 1518.0 to 1525.0 MHz

Impedance: 50 Ohms

Connector (Inmarsat): SMA Female

Connector (GNSS): SMA Female

Operating Temperature: -25 deg C to +55 deg C

Marine Active Antenna

Mast/Pole Mounting Bracket

3 x Small Mast Mounting Grub Screws

3 x Large Antenna Mounting Screws

3 x Small Split Washers

3 x Large Flat Washers

Marine-ready design: Built to perform reliably in offshore and harsh weather conditions.

Active antenna performance: Supports stable satellite connectivity for voice and data communication.

Mast and pole mounting: Allows optimal positioning for improved signal reception.

Reliable Inmarsat connectivity: Designed for consistent communication in remote marine environments.

Durable construction: Engineered for long-term use in demanding outdoor conditions.
